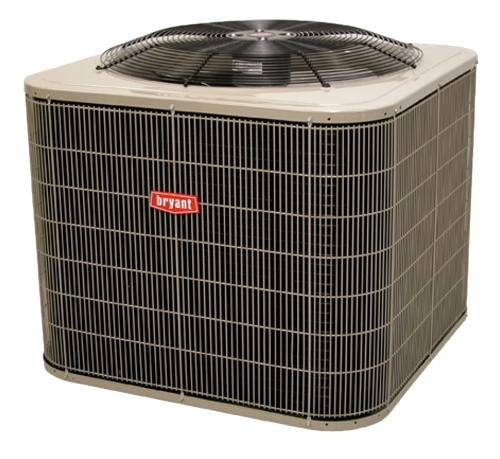

113A Legacy Series
- 13.0 -- 13.2 SEER/10.8 -- 11.0 EER
- Microtube Technology refrigeration system
- Indoor air quality accessories available
- Sound level as low as 75 dBA
- Puron refrigerant -- environmentally sound
- Scroll compressor
- Internal pressure relief valve
- Filter drier
- Solid, durable sheet metal construction
- Baked--on, complete outer coverage, powder paint
MODEL | Cooling Cap. MBtuH | SEER | Refrigerant Charge Oz. | Line Size | Dimensions HxWxD | Weight Lbs. |
---|---|---|---|---|---|---|
113A018 | 18.0 | 14.5 | 56 | 3/8 | 25-5/16x23-1/8x23-1/8 | 107 |
113A024 | 24.0 | 14.3 | 61 | 3/8 | 25-5/16x23-1/8x23-1/8 | 110 |
113A030 | 30.0 | 15.0 | 67 | 3/8 | 28-11/16x23-1/8x23-1/8 | 111 |
113A036 | 36.0 | 14.0 | 84 | 3/8 | 32-5/16x25-3/4x25-3/4 | 141 |
113A042 | 42.0 | 14.0 | 112 | 3/8 | 32-5/16x31-3/16x31-3/16 | 190 |
113A048 | 48.0 | 14.0 | 131 | 3/8 | 35-3/4x31-3/16x31-3/16 | 186 |
113A060 | 60.0 | 13.5 | 128 | 3/8 | 25-1/2x31-3/16x31-3/16 | 190 |
Warranty Information
- All Parts for 120 months - Original Owner
- Compressor for 120 months - Original Owner
Available Documents
- View Document (Consumer Literature, Customer Information, Color)
- View Document (Owners Manual, Quick Start Guide, In the Box)
