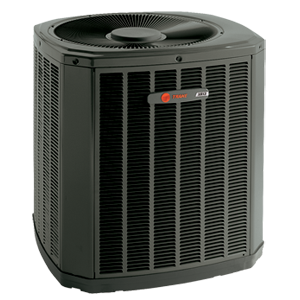

Trane XR15 Heat Pump
The heating and cooling reliability you expect from Trane and the energy efficiency you deserve. The XR15 offers up to a 16.50 SEER rating when matched with Trane variable speed air handlers, furnaces and Comfort Coils™.
- Up to 16.50 SEER, 9.00 HSPF
- Climatuff® Compressors
- Galvanized-steel louvered panels
- Baked-on powder paint
- Corrosion-resistant Weatherguard™ fasteners
- Spine Fin™ Outdoor Coil
- DuraTuff™ rust-proof basepan
- Sound Insulator on compressor
| MODEL | Cooling Cap. MBtuH | SEER | Heating Cap.MBtuH | HSPF | Refrigerant Charge Oz. | Line Size | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|---|
| 4TWR5018G | 19.0 | 15.0 | 17.4 | 8.2 | 5 | 5/8-3/8 | 34 x 30.1 x 33 | 176 |
| 4TWR5024G | 24.2 | 15.0 | 22.2 | 9.0 | 7 | 5/8-3/8 | 34 x 30.1 x 33 | 208 |
| 4TWR5030G | 32.2 | 15.0 | 30.6 | 9.0 | 8 | 3/4-3/8 | 38.4 x 35.1 x 38.7 | 239 |
| 4TWR5036G | 36.6 | 14.3 | 34.8 | 9.0 | 7 | 3/4-3/8 | 37.9 x 35 x 37.9 | 227 |
| 4TWR5042E | 40.5 | 14.8 | 38.5 | 8.2 | 12 | 3/4-3/8 | 46.4 x 35.1 x 38.7 | 277 |
| 4TWR5048E | 48.0 | 0.0 | 0.0 | 0.0 | 13 | 7/8-3/8 | 51 x 35.1 x 38.7 | 294 |
| 4TWR5049E | 49.0 | 15.0 | 46.5 | 8.5 | 13 | 7/8-3/8 | 51 x 35.1 x 38.7 | 294 |
| 4TWR5060E | 59.0 | 14.5 | 55.5 | 8.2 | 12 | 7/8-3/8 | 51 x 35.1 x 38.7 | 295 |
| 4TWR5061E | 59.0 | 14.5 | 55.5 | 8.2 | 13 | 1-1/8 - 3/8 | 51 x 35.1 x 38.7 | 295 |
Warranty Information
- Compressor for 120 months -
- Outdoor Coils for 120 months -
- Internal Functional Parts for 120 months -
Available Documents
- View Document (Specification Sheet, Technical Information)
- View Document (Installation & Operation, In the Box)
