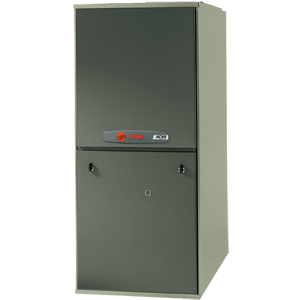

Trane XV95 Gas Furnace
The XV95 delivers one of the highest efficiencies in the industry, providing superior performance for the ultimate comfort experience.
- Up to 96.7% AFUE
- Variable-speed blower motor
- Two-stage heating
- Heavy gauge, two-tone powder-painted cabinet
- Increased dehumidification with Comfort-R™
- Durable adaptive silicon nitride hot surface igniter
- One-piece aluminized steel primary heat exchanger
- Insulated cabinet for quiet operation
- Cleanable filter with spring-loaded filter rack
- Compatible with ERV, humidifier and air cleaner
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| TUH2B060A9V3V* | 60.0 | 58.2 | 97.0 | 1325 | 40 x 17-1/2 x 28 | 146 | |
| TUH2B080A9V3V* | 80.0 | 77.6 | 97.0 | 1390 | 40 x 17-1/2 x 28 | 156 | |
| TUH2B080A9V4V* | 80.0 | 77.6 | 97.0 | 1768 | 40 x 17-1/2 x 28 | 158 | |
| TUH2C100A9V4V | 100.0 | 96.7 | 96.7 | 1863 | 40 x 21 x 28 | 185 | |
| TUH2C100A9V5V | 100.0 | 96.7 | 96.7 | 1919 | 40 x 21 x 28 | 187 | |
| TUH2D120A9V5V | 120.0 | 116.0 | 96.7 | 2160 | 40 x 241/2 x 28 | 193 | |
| TDH2B060A9V3VA | 60.0 | 57.0 | 95.0 | 1350 | 40 x 17-1/2 x 28 | 146 | |
| TDH2B080A9V3VA | 80.0 | 76.0 | 95.0 | 1350 | 40 x 17-1/2 x 28 | 158 | |
| TDH2B080A9V4VA | 80.0 | 76.0 | 95.0 | 1706 | 40 x 17-1/2 x 28 | 160 | |
| TDH2C100A9V4VA | 100.0 | 95.0 | 95.0 | 1818 | 40 x 21 x 28 | 175 | |
| TDH2D120A9V5VA | 120.0 | 114.0 | 95.0 | 2100 | 40 x 24-1/2 x 28 | 196 |
Warranty Information
- Heat Exchanger - Limited Lifetime Warranty
- All Parts for 120 months - Internal Functional Parts
