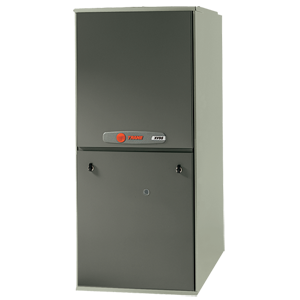

Trane XC95m Gas Furnace
Communicating technology in a fully modulating furnace for the ultimate comfort and greater efficiency. The advanced ComfortLink II allows the XC95m to constantly calibrate itself for optimal performance year after year.
- Up to 95% AFUE
- Communicating capability
- Fully modulating heat
- ComfortLink II communicating capability
- Variable-speed blower motor
- Fully modulating gas heat provides greater fuel efficiency and ultimate comfort control
- One-piece aluminized steel primary heat exchanger
- Insulated cabinet for quiet operation
- Cleanable filter with spring-loaded filter rack
- Compatible with ERV, humidifier and air cleaner
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| TUHMB060ACV3V* | 60.0 | 57.0 | 95.0 | 438 | 40x17-1/2 x28 | 146 | |
| TUHMB080ACV3V* | 80.0 | 75.0 | 95.0 | 648 | 40x17-1/2 x28 | 156 | |
| TUHMC100ACV4V* | 100.0 | 95.0 | 95.0 | 666 | 40x21x28 | 185 | |
| TUHMD120ACV5V* | 120.0 | 114.0 | 95.0 | 827 | 40x24-1/2 x28 | 193 | |
| TDHMB060ACV3VB | 60.0 | 57.0 | 95.0 | 393 | 40x17-1/2 x28 | 146 | |
| TDHMB080ACV3VA | 80.0 | 74.0 | 95.0 | 512 | 40x17-1/2 x28 | 158 | |
| TDHMC100ACV4VA | 100.0 | 95.0 | 95.0 | 592 | 40x21x28 | 175 | |
| TDHMD120ACV5VB | 120.0 | 114.0 | 95.0 | 728 | 40x24-1/2 x28 | 196 |
Warranty Information
- Heat Exchanger - Limited Lifetime
- All Parts for 120 months - Internal Functional Parts
Available Documents
- View Document (Specification Sheet, Technical Information)
- View Document (Consumer Literature, Color)
- View Document (Installation & Operation, In the Box)
- View Document (Installation & Operation, In the Box)
