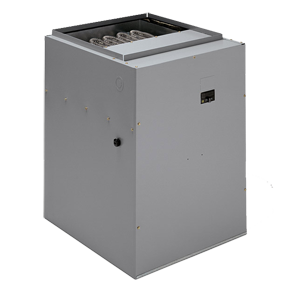

EF Series Electric Furnaces
Air handler / electric furnace match with standard cased coils for AC or heat pumps.
- EFV - Variable Speed Motor By changing the speed of its airflow during start-up, your furnace can adjust humidity levels and create more even temperatures throughout your home, while enhancing efficiency and reducing operating noise.
- EFC - Three speed PSC Motor
- Insulated Cabinet Prevents loss of warm air while reducing noise from the motor.
- Multi-position Upflow, counterflow and horizontal
- Field installed 5 - 20 kW heat strips
| MODEL | Tons | Clg. Cap. MBtuH | CFM Max | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|
| EFV12BC | 3.0 | 36.0 | 1220 | 25x17.5x21 | 86 |
| EFC16CC | 4.0 | 48.0 | 1730 | 26x21x21 | 96 |
| EFC20DC | 5.0 | 60.0 | 2220 | 26x24.5x21 | 104 |
| EFC08BC | 2.0 | 24.0 | 1080 | 25x17.5x21 | 78 |
| EFC12BC | 3.0 | 36.0 | 1340 | 25x17.5x21 | 85 |
| EFV08BC | 2.0 | 24.0 | 1010 | 25x17.5x21 | 79 |
| EFV16CC | 4.0 | 48.0 | 1440 | 26x21x21 | 97 |
| EFV20DC | 5.0 | 60.0 | 1840 | 26x24.5x21 | 105 |
Warranty Information
- All Parts for 120 months -
Available Documents
- View Document (Specification Sheet, Technical Information)
